Professional Softener

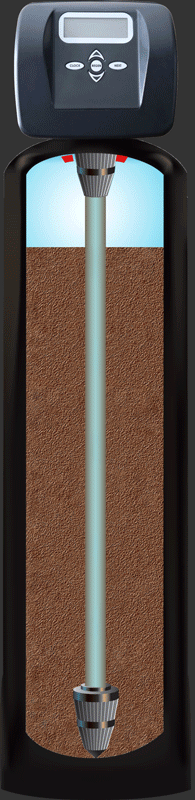

Operation of the Softener

Hard water contains dissolved minerals in the form of Calcium (Ca), Magnesium (Mg), Iron (Fe), Copper (Cu), & Zinc (Zn). Reduction of these contaminants is accomplished by softening the water through an ion-exchange process. As water flows through the mineral tank, the dissolved minerals become attached onto and inside the resin. Over a period of time the resin will become saturated with contaminants, and the softener will require regeneration using a sodium or potassium brine solution.

Softening Media – AquaPro 500-2 Hybrid

The exchange media is a high quality, FDA certified, commercial-grade strong acid hybrid (Cation) Functional Matrix resin with a very high whole bead count and no color throw. It's physically hard and is moderately chlorine resistant. Hybrid media is engineered to encompass all the attributes of 500-1 softening media in addition to leveraging all functions of 500-2 Conditioning media when working together with ProGuard or ProGuard Plus. The media combines high operating capacity with excellent chemical and physical stability for a long, dependable life. An NSF-approved clarifying media is included to provide crystal-clear water. Food-grade gravel under-bedding ensures uniform flow, minimal pressure drop, and excellent performance.

Controller/Meter

Regeneration of the system is initiated by a simplified digital controller, which electronically meters softened water flow and makes decisions to regenerate based on water consumption and program settings. Salt dosage is controlled differentially to maximize the softener's efficiency.

Regeneration

These softener models are controlled electronically. A fully programmable microprocessor controls Tank Fill, Percolation, Ion Exchange, Backwash, Rapid Rinse, and Return-To-Service cycles.

Control Valve

A hydraulically balanced and coated piston slides effortlessly through seals & spacers. All parts in the waterway are either coated brass or composite Noryl® materials to ensure a long and reliable service life.

Resin Tank

All softener models feature a non-corrosive fiberglass tank with a one-piece thermoplastic inner liner. The tank has a maximum working pressure of 90 psi and a working temperature up to 120°F. The tank is approved by NSF, UL, and the FDA. It also meets WQA Standard S-100. All fiberglass tanks carry a limited lifetime warranty.

Brine Tank

A high capacity brine tank is included as part of this system. The brine tank is a combination of a brine maker and salt storage vessel and is made of tough, high-density polyethylene. Larger tanks are available for extra salt storage capacity, if required.

Brine System

Brine refill is automatically controlled by the computer to provide the exact amount of brine needed for each regeneration. The brine system has a float and safety valve shut-off, which minimizes the chance of overflowing the brine tank. All units are equipped with an air check.

ProGuard & ProGuard Plus

A ProGuard reservoir is included with this system to ensure peak performance, maximize efficiency, and provide the highest level of protection from inorganic metals and minerals.

Texas Versions

Texas versions of the Professional Softener are also available with AquaPro 500-1 resin. IWP stocks a version with AquaPro 500-2 resin to address the Radium, combined (-226 & -228) found in local municipal water supplies and private wells in Texas. We also have versions available with AquaPro 500-3 and AquaPro 500-4 for restaurants and businesses that need treated, soft water that will carbonate for your drinking water and fountain drinks. Call to find out more information concerning custom builds to meet your needs.
